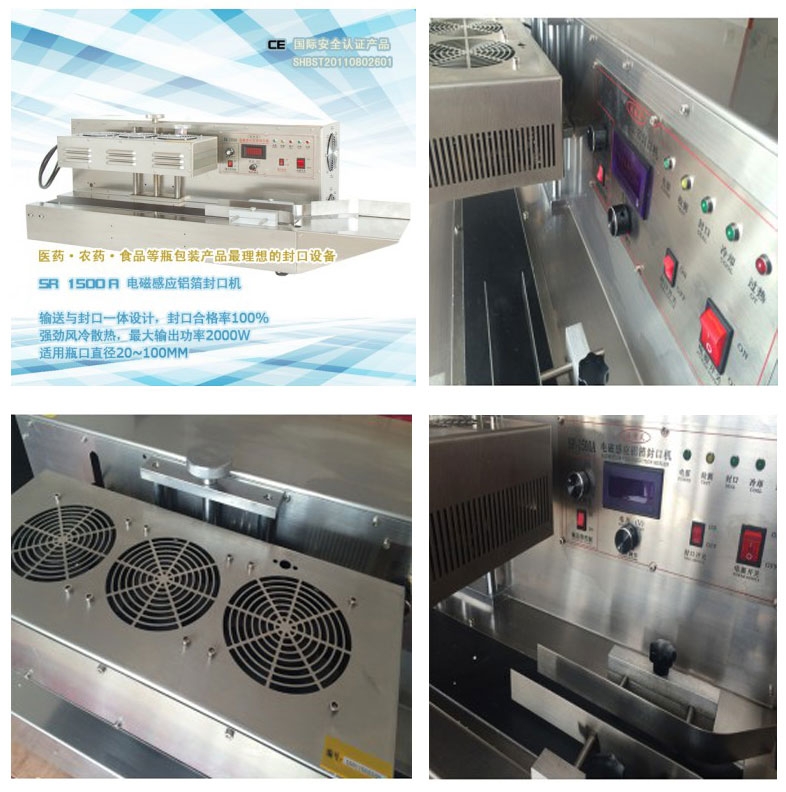

Air cooled & table top induction sealing machine SR-1500A
Desk type air cooling electromagnetic induction aluminum foil sealing machine SR-1500A
1、Full modular component design, can be against moisture, erosion, dust and magnetism, minimizes maintenance requirements and increase the rease.
2、The induction generator has adopt the latest imported transistor and CPU module cont
3、All functions are marked on the panel clearly . operation is very convenience
4、The induction sensor with 4 pieces coil and 3 pieces 220V fan( coil quantities can be chance accorder to bottle nect diameter), it can sealing quickly and perfectly.
5、Full Air-cooling systems, efficient high-speed, it can continual work for whole day
6、With stainless steel body, meet the GMP demand.
7、With Mechatronics Design and variable stepless speed adjusted motor
8、Our machine has get the CE authentication
for pesticide, tablet & capsule, foods, cosmetic, lubricant &oil packaging etc. Plastic bottle and glass bottle sealing.
|
model |
SR-1500A |
|
bottle neck diameter |
20-80mm |
|
bottle height |
0-310mm |
|
conveyor speed |
0-10m/s |
|
Conveyor size(L*W) |
800mm *95mm |
|
max power |
2000W |
|
sealing speed |
200BPM |
|
electricity power |
220V， 50/60Hz |
|
induction sensor size |
450mm*190*100mm |
|
machine size |
950mm* 550mm*480mm |
|
machine weight |
45kg |
|
packaged size |
1030mm*630mm*535mm |
|
package weight |
65kg |
